Description:

B Series Connectors

Low voltage push-pull connectors for data, signal, electrical and power use!

Himo connectors are used in instrumentation, medical devices, and anywhere a high density, high reliability, quick mating connector is needed.

These high precision connectors. With a life span greater than 5000 insertions, complete EMC shielding, shock resistance,
vibration resitance, and corrosion resistance this is the highest quality connector on the market.

Main features:
-Security of the push-pull self-latching system;
-Multipole types 2 to 26 contacts;
-Solder or print contacts(straight or elbow);
-High packing density for space savings;
-Multiple key options to avoid cross mating of similar connectors;
-Keying system for connector alignment;
-360°screening for full EMC shielding;
-Pull-away plugs with lanyards available.

Main Parameters:
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: IP50

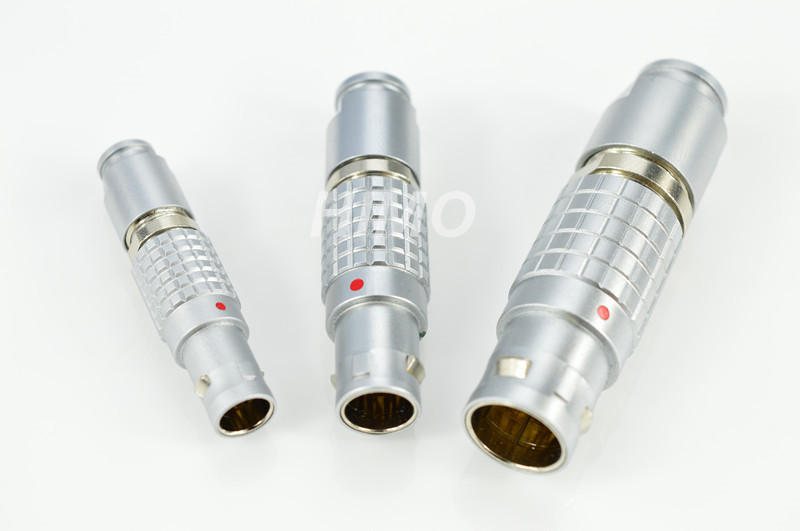

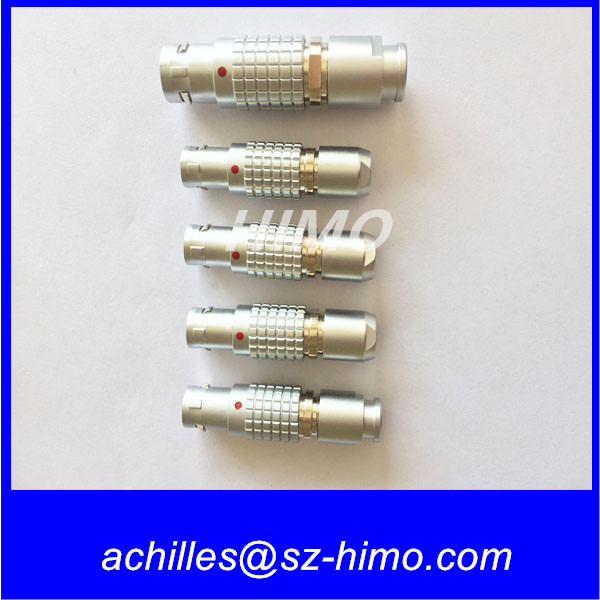

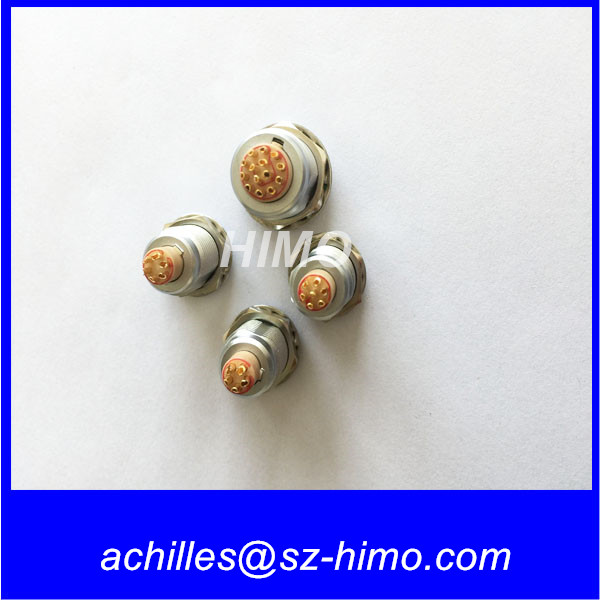

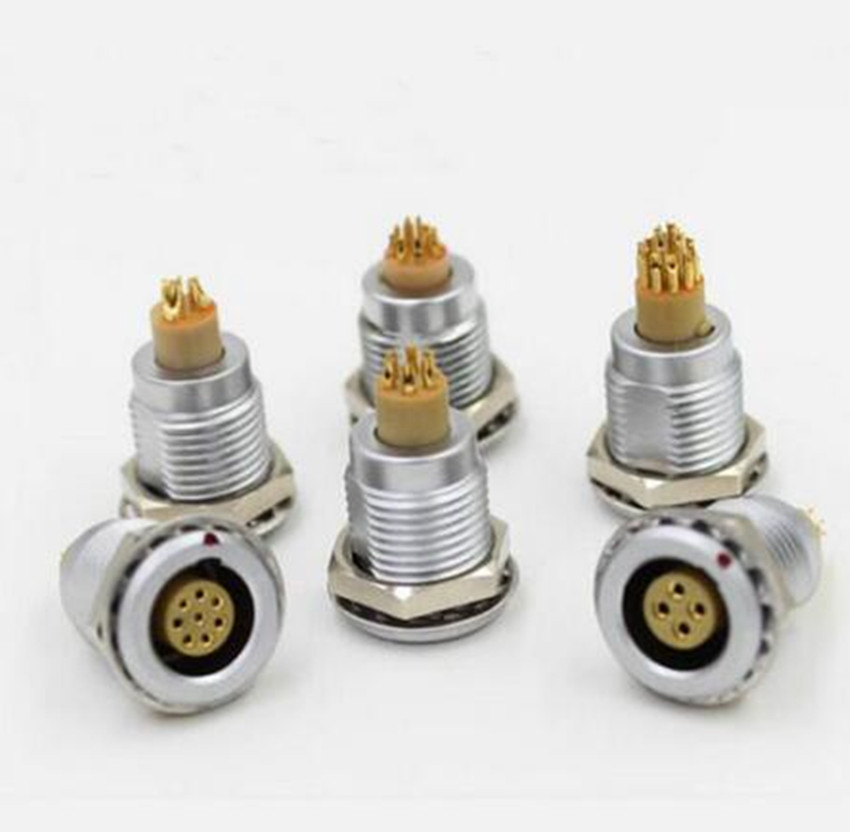

Picture:

Factory show:

6 pin circular connector

12 pin electrical connector

lemo equivalent
